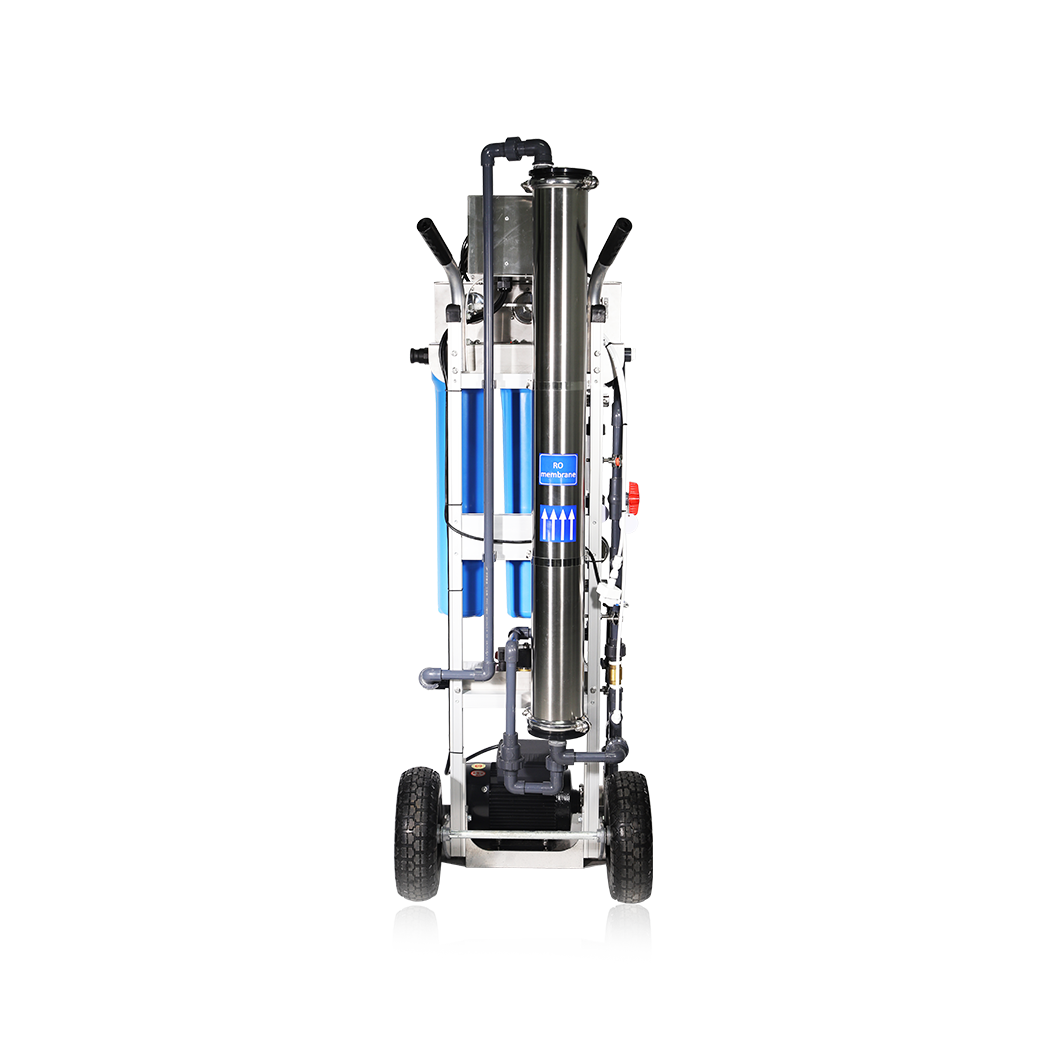

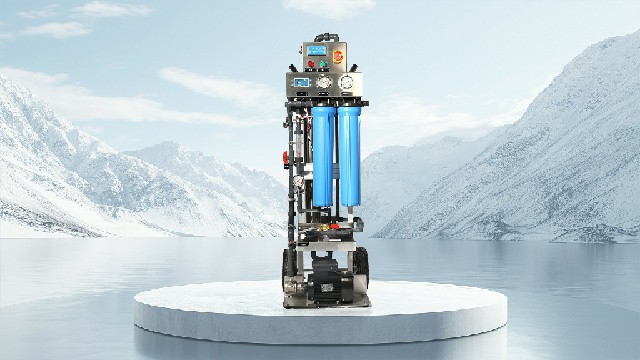

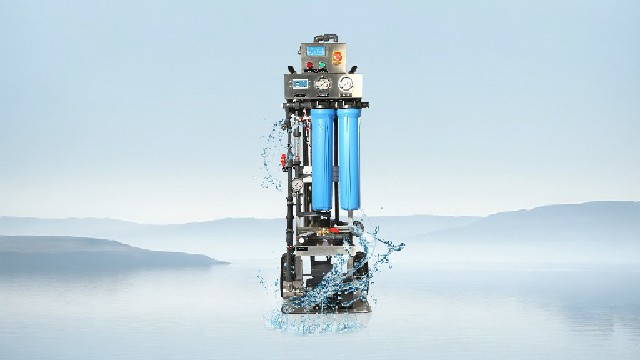

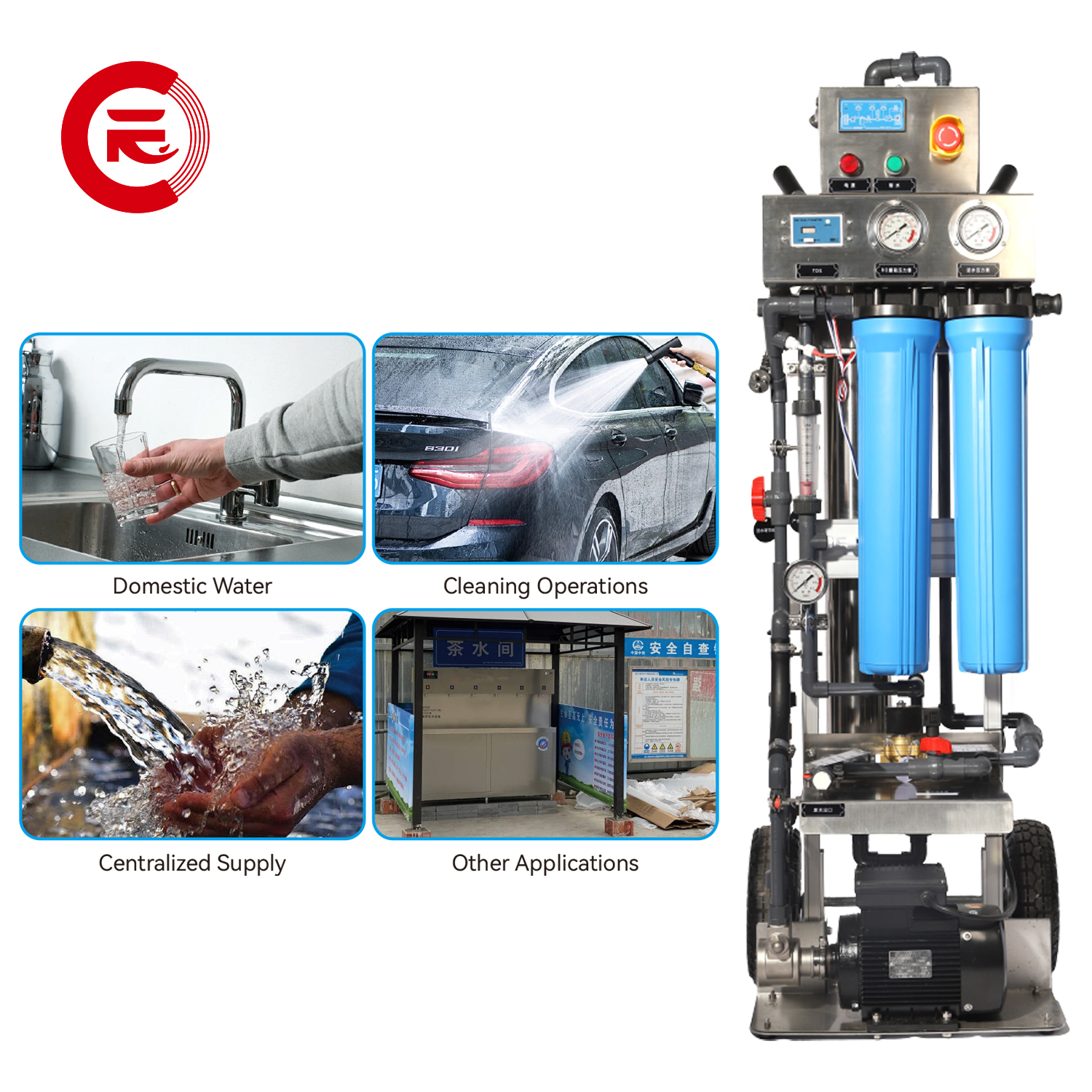

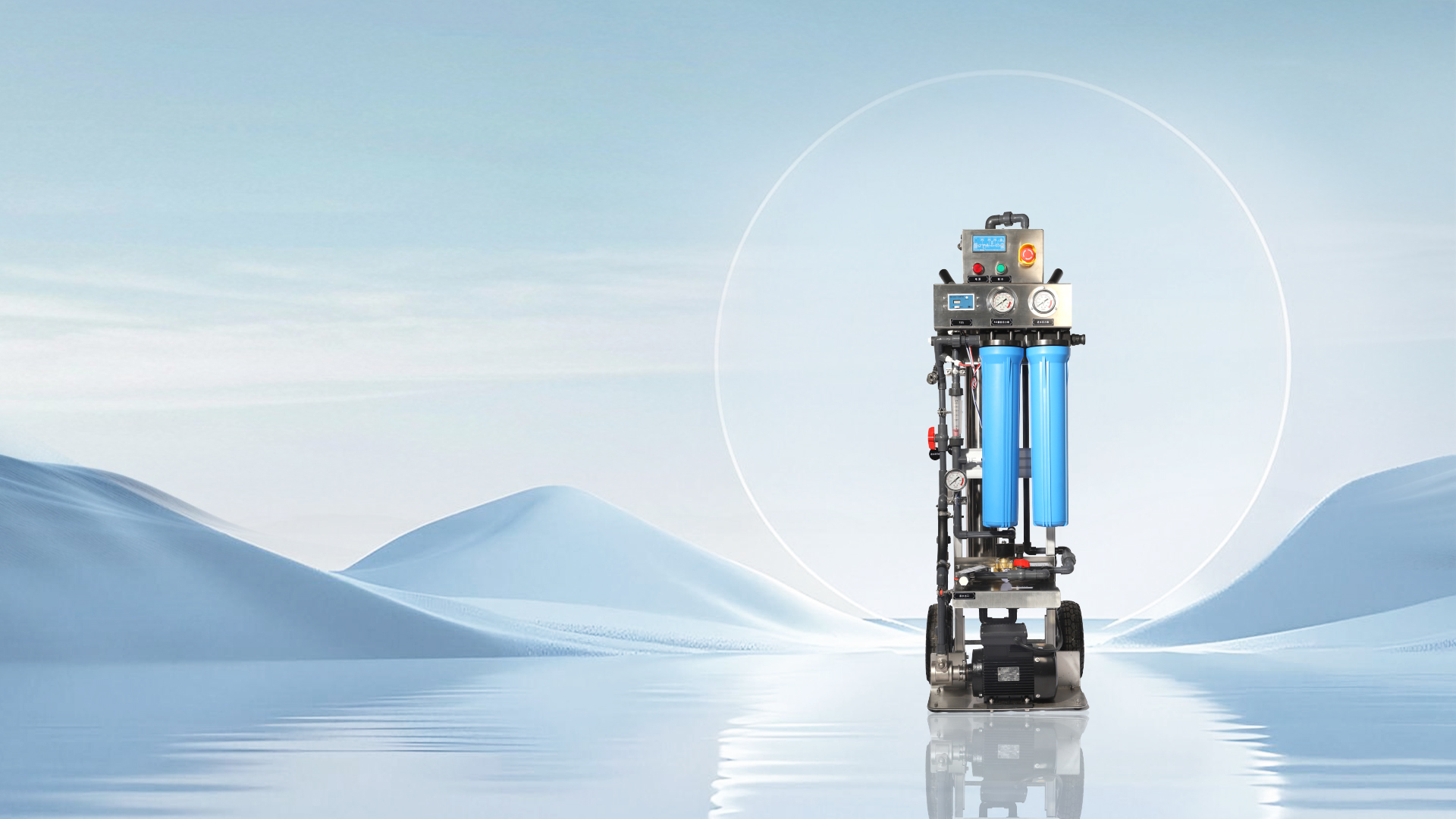

The Hand-Push RO Machine is a mobile water purification unit that works alongside RHINOSTAR wet-mode cleaning equipment. Industrial-grade reverse osmosis filtration treats surface water and groundwater to provide a stable supply of purified water for solar panel cleaning operations.
Why the RHINOSTAR RO Machine?
Removes impurities, microorganisms, and heavy metals from surface water and groundwater through multi-stage filtration.
Two output versions deliver precise filtration that meets WHO water quality standards.
Compatible with multiple feed water sources for varying site conditions and water availability.

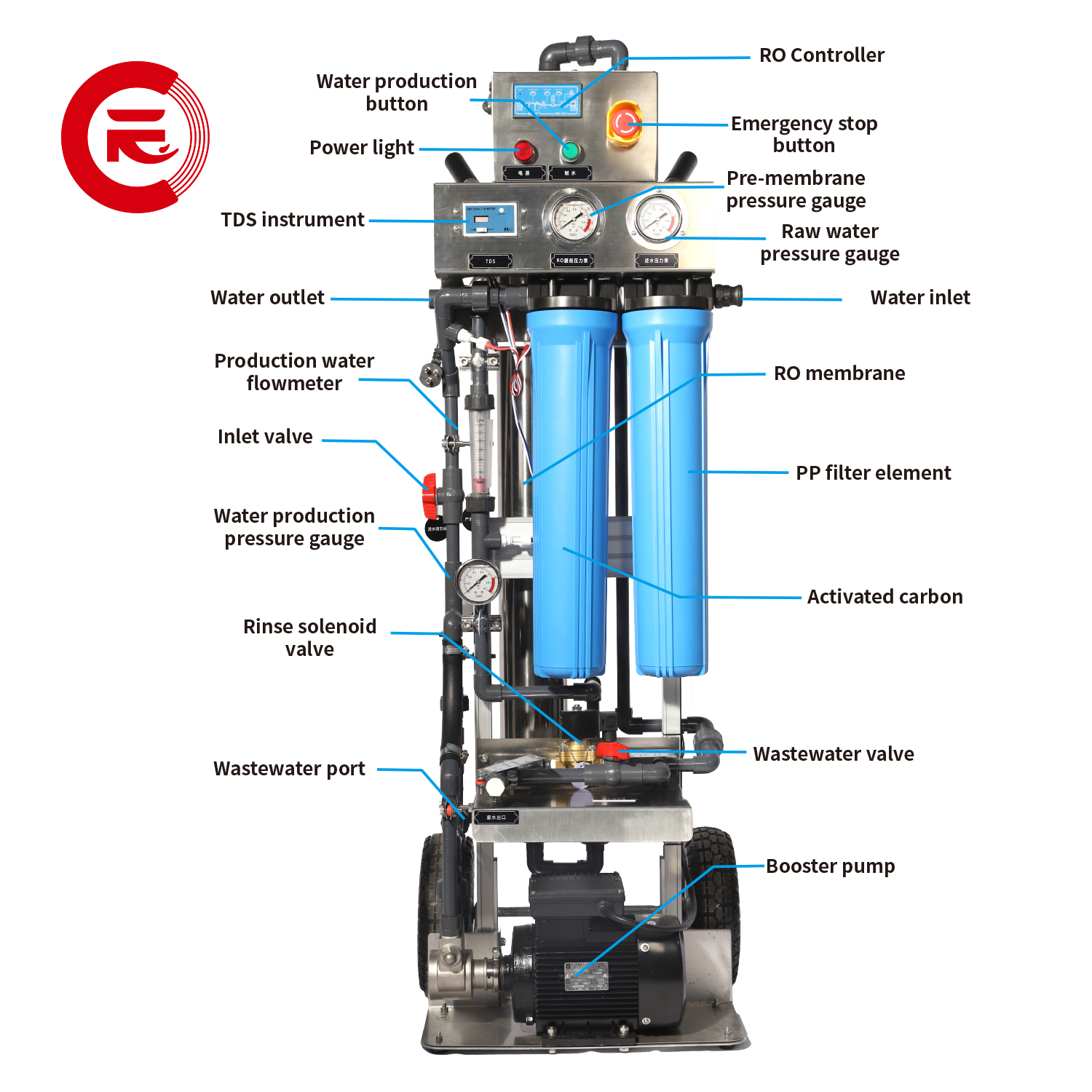

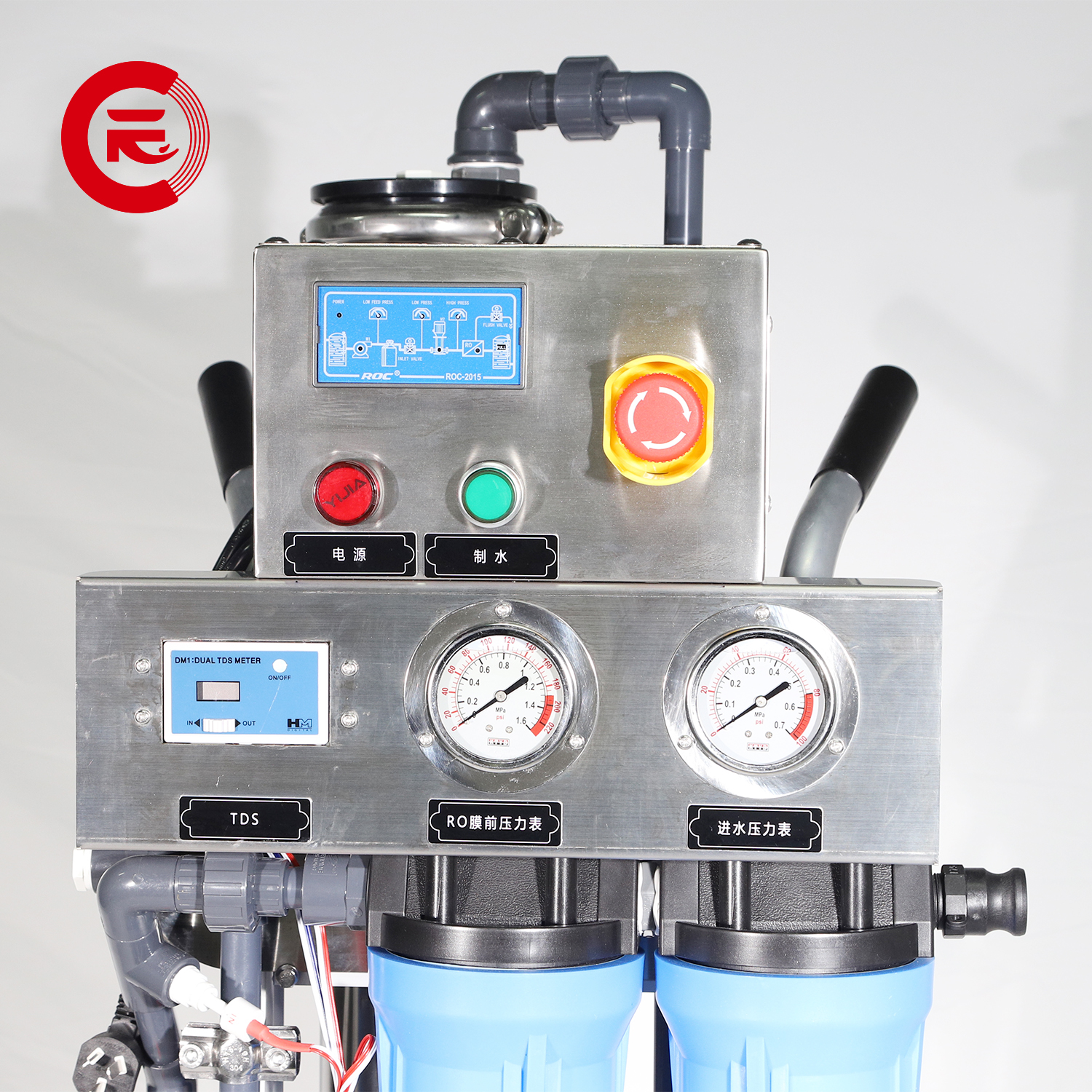

The automatic control system starts and stops the machine with a single click, simplifying daily operation.

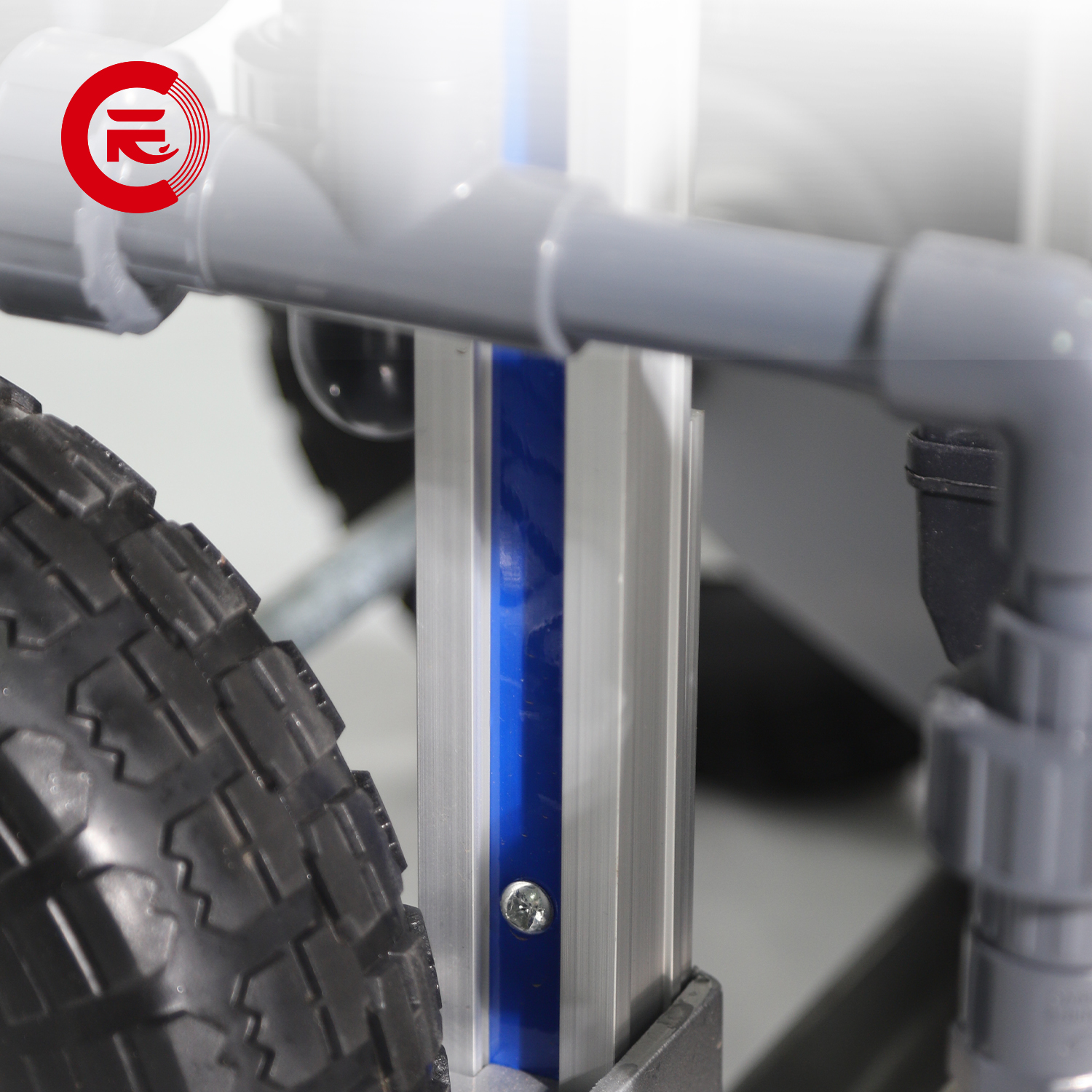

An industrial-grade aluminium alloy frame combines lightweight construction with excellent structural stability.
Solid load-bearing wheels provide stable movement and easy manoeuvrability across working areas.
The RO Machine works alongside RHINOSTAR wet-mode cleaning equipment by preparing purified water for cleaning operations. Together, they create a complete workflow from water treatment to panel cleaning, helping maintain consistent water quality throughout the process.
Solar cleaning sites often span multiple rows or sections across a large area. The RO Machine's mobile design lets one operator reposition it as work progresses, without setting up a fixed installation each time.
Optional accessories such as a rear activated carbon filter and UV sterilizer can be combined as needed to further enhance purification efficiency and water supply convenience.
| Item | Value |
|---|---|
| Water production flow rate (net weight) | 300 L/h (50 kg), 500 L/h (55 kg) |
| Package weight | 70 kg / 75 kg |
| Rated power | 750 W |
| Standard power supply | AC 220V 50Hz (customisable AC 220V 60Hz) |
| Raw water types | Tap water, unpolluted groundwater, and Class III or above surface water |
| Feed TDS | ≤ 1,000 ppm |
| Water supply pressure | ≥ 0.2 MPa |
| Operating pressure | < 1 MPa |
| Operating temperature | 5–45°C |
| Feed chlorine | < 0.1 ppm |
| Feed turbidity | < 10 NTU |
| Feed pH | 6–8 |
| Package size (mm) | 550 × 600 × 1700 |
| Net size (mm) | 485 × 523 × 1530 |
